Color
Regular price $65.64 Sale price $61.26 Save $4.38
/
  • Worldwide shipping
  • Free returns
  • Carbon neutral
  • Secure payments
  • In stock, ready to ship
  • Inventory on the way

SPECIFICATIONS

Brand Name: ZCGM

Origin: Mainland China

Compatible Brand/Model: Nintendo

Compatible Nintendo Model: GameBoy Color

Accessories Type: Motherboard

3.7V 1800mA lithium battery for GBC battery charging Mod retrofit Game Boys Color

Product features:

1.1800 mA polymer lithium battery

2. The original power port charges it

3. Low battery red light prompt

4. Built in drive plate, requiring welding operation

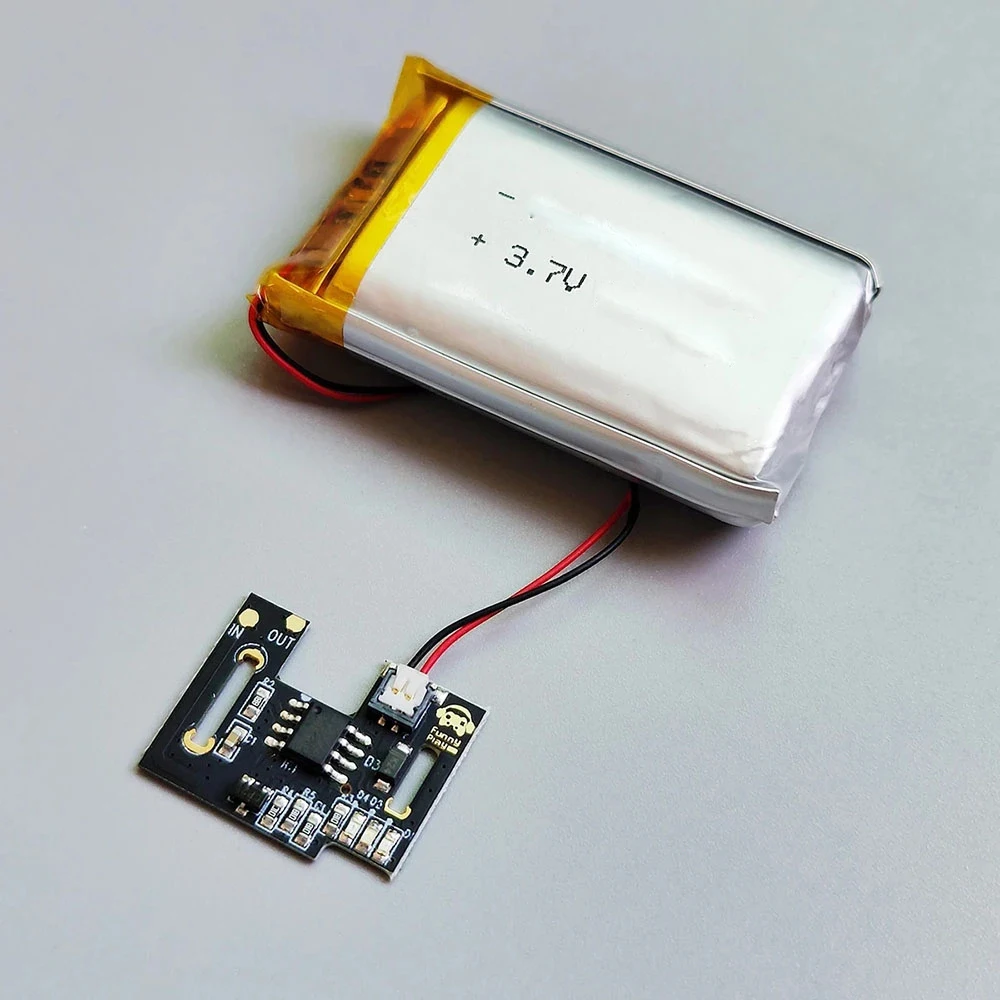

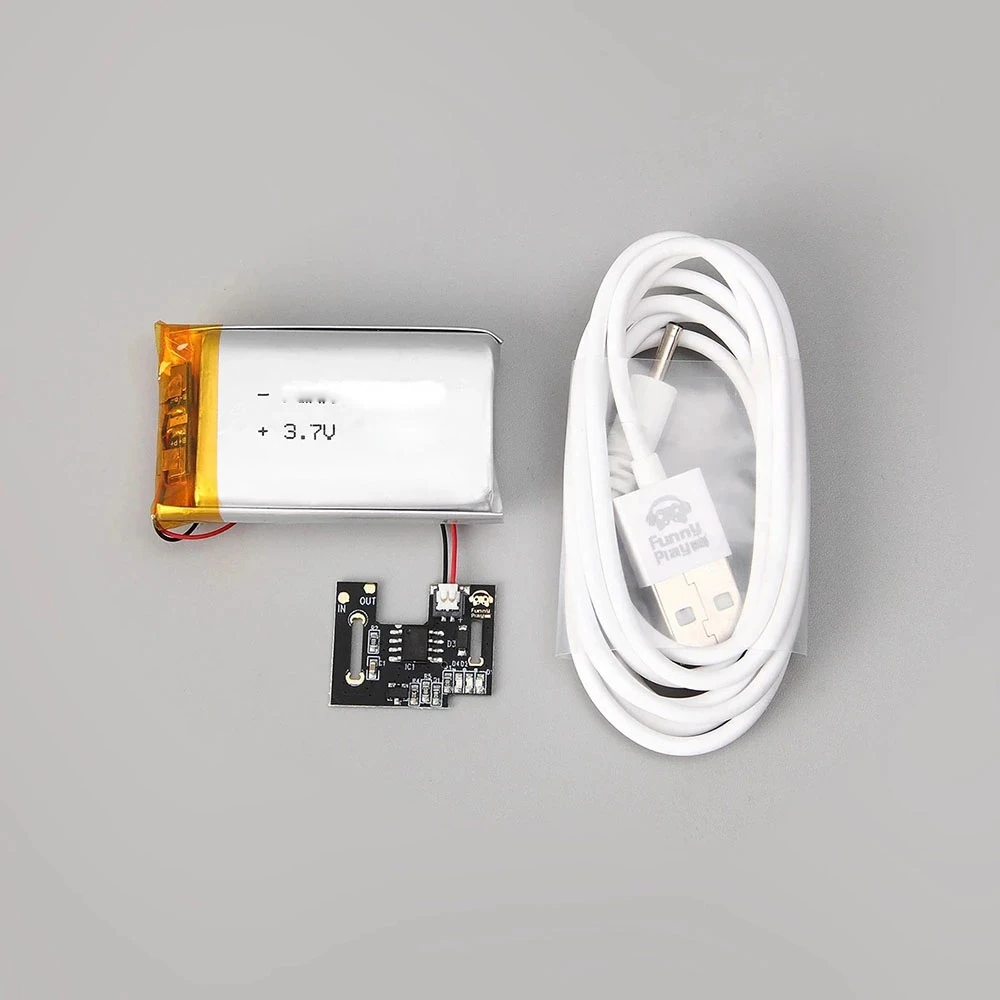

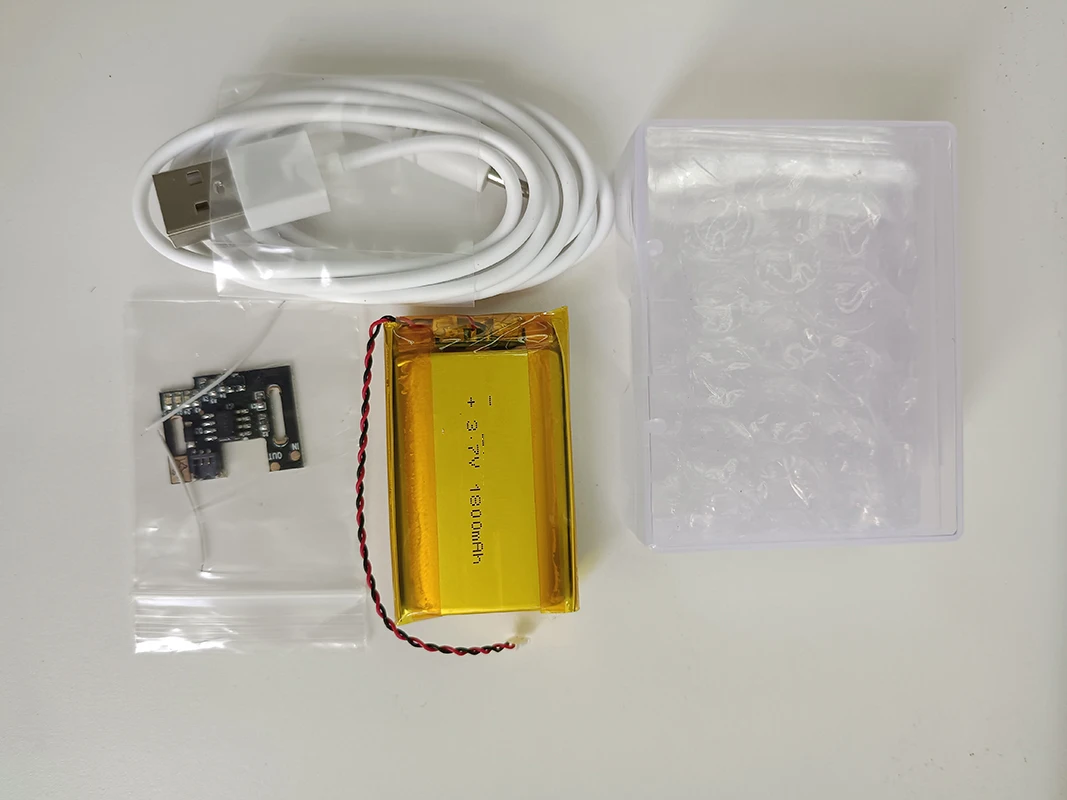

Include:

1 x tablero loading

1 x 1800 mAh battery (obtained in actual test)

2 x wire

1 USB power cable

The charging cable can only be used when the MOD is installed, and cannot be used in the inventory system. The system must be switched off when charging. Batteries are dangerous! Don't cut or stab!

Installation steps:

1. Remove the six Y-shaped screws on the back of the host and remove the rear cover.

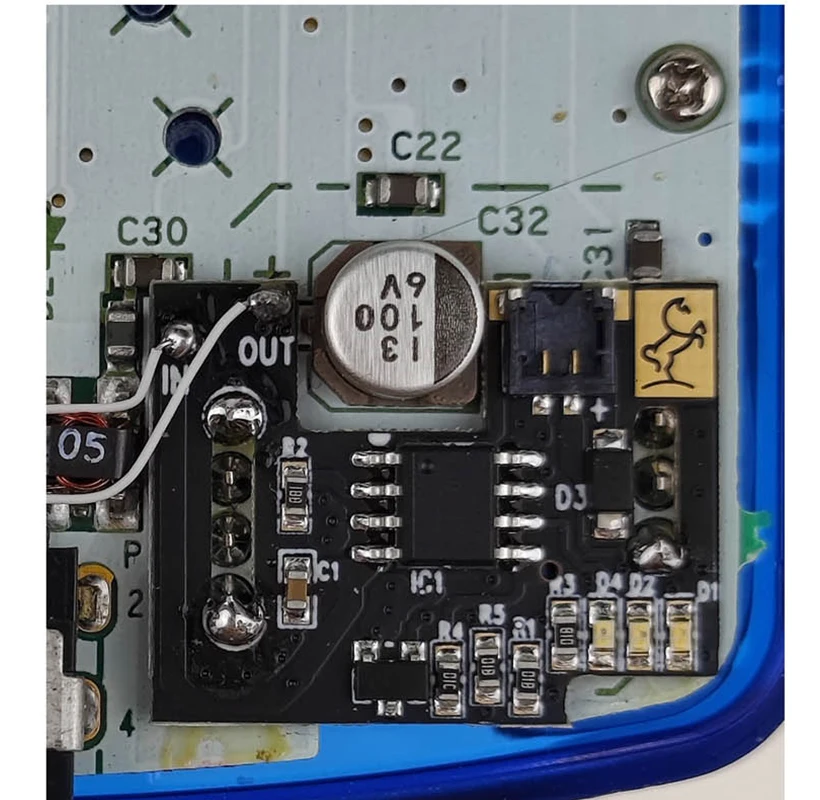

2. Place the drive board at the position of the main board as shown in the figure.

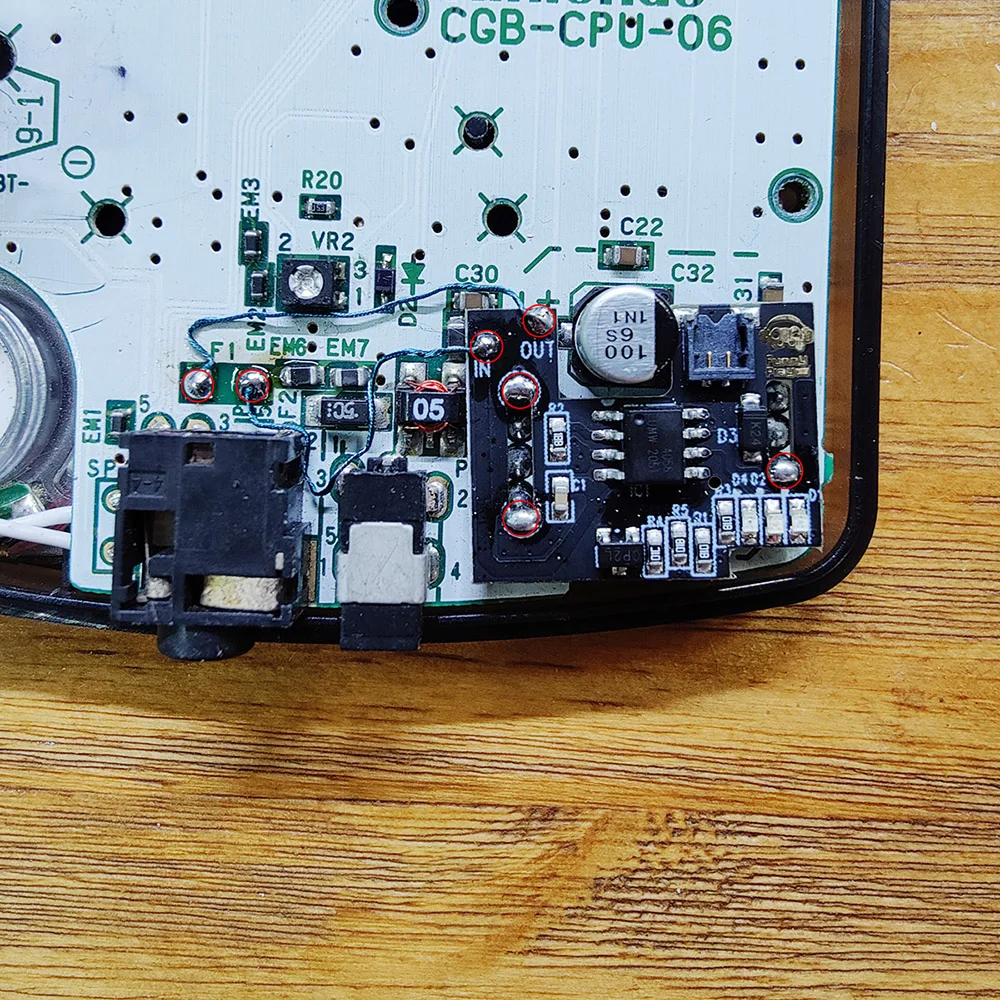

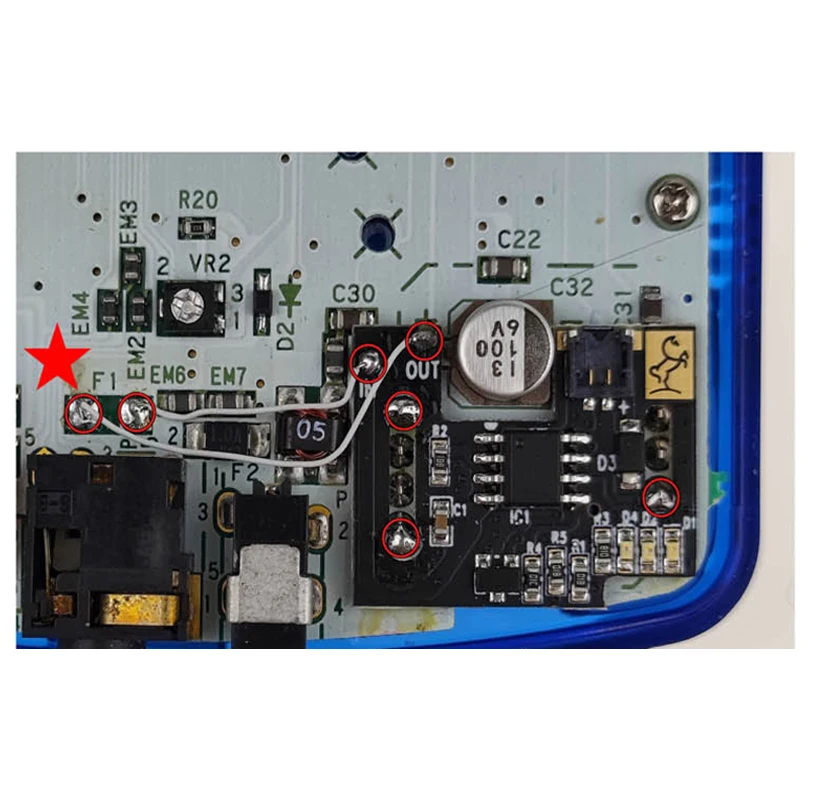

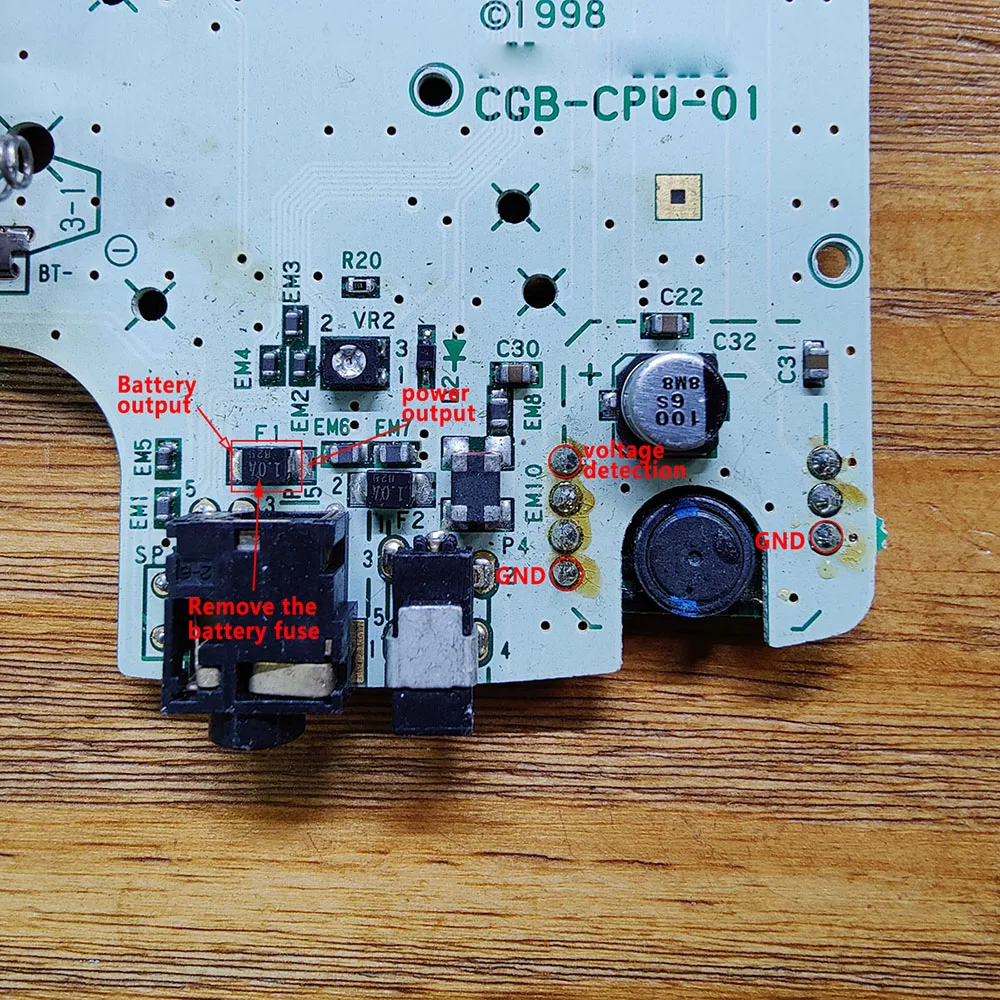

3. According to the welding points circled in the picture, there are 7 welding points in total, and the F1 fuse at the position marked by the five-pointed star needs to be removed.

4. Remove the battery shrapnel on the right side of the battery compartment.

5. Put the lithium battery into the battery compartment and put the battery power cable through the middle hole

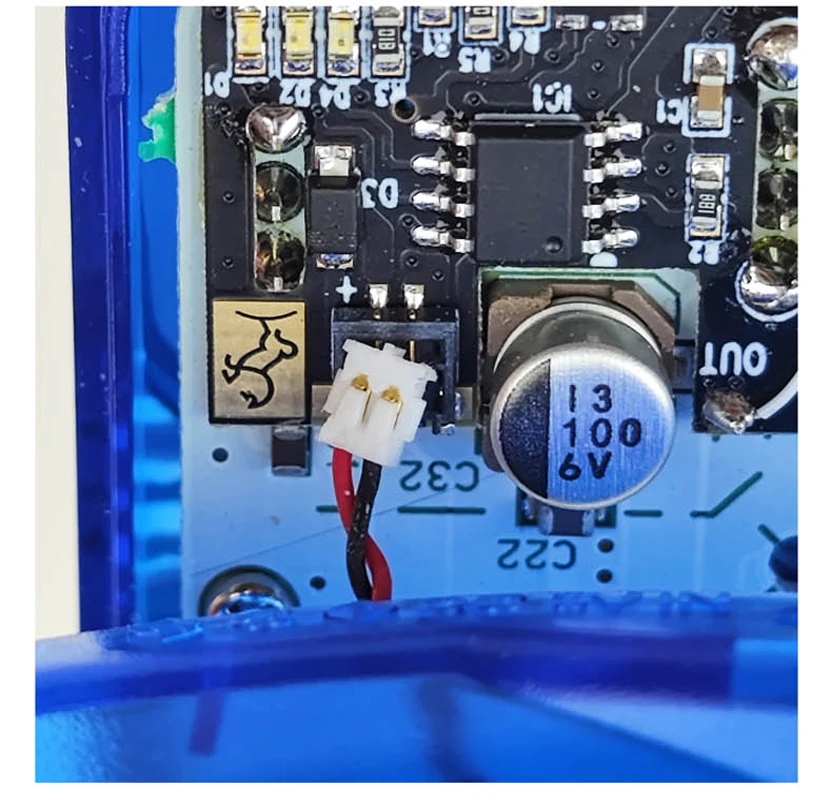

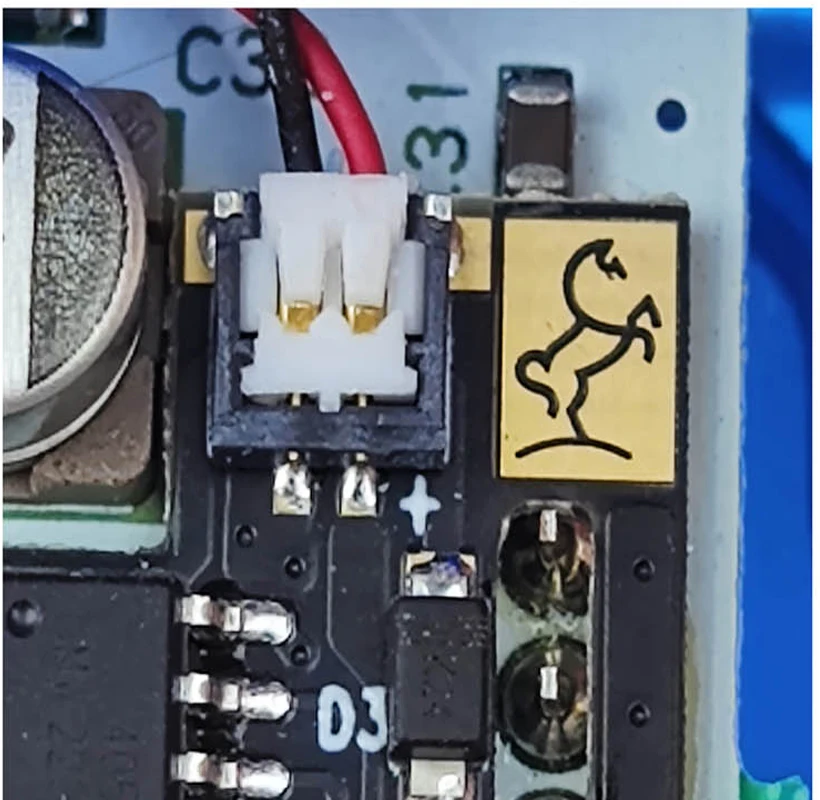

6. Connect the battery power cord to the drive board. Please compare it with the picture and then install it. There are both sides. If you make a mistake, the battery and the drive board will be damaged. Find the interface of the drive board and press down the battery power cord.

7. Install the rear cover and tighten the screws.

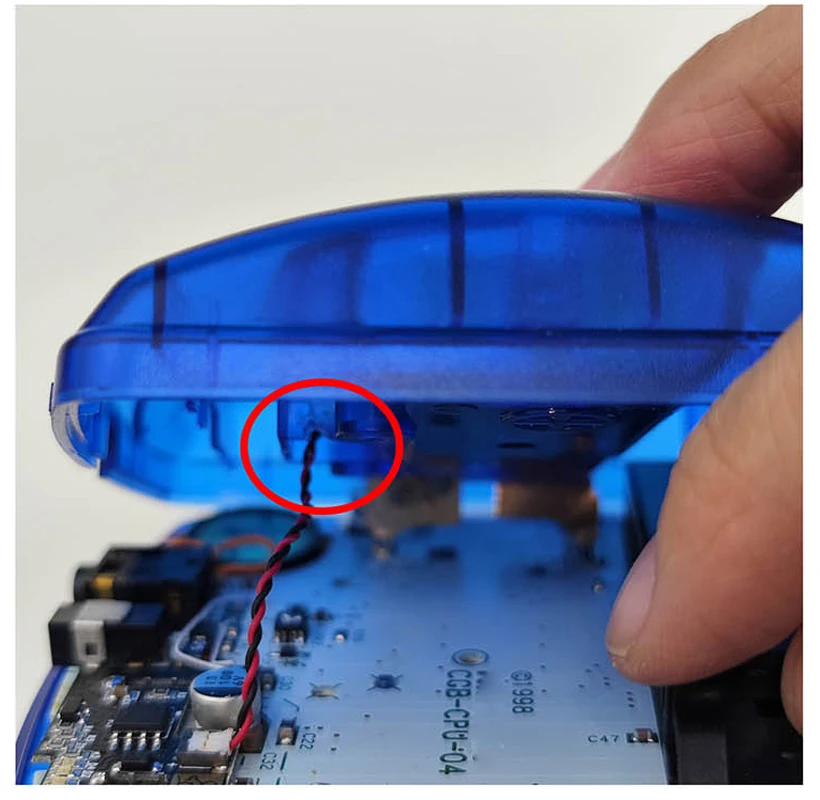

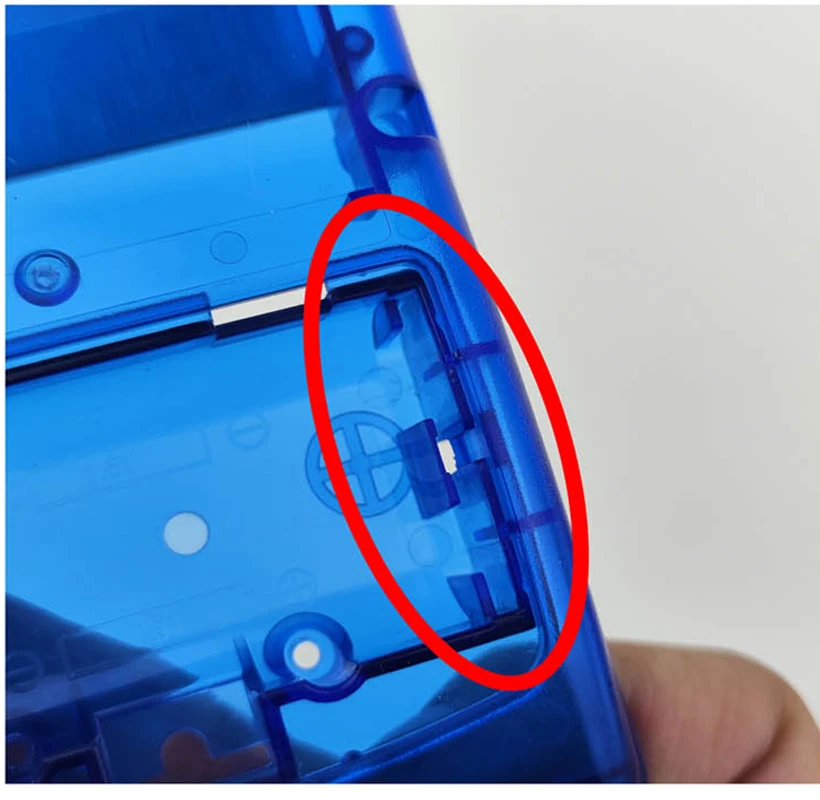

8. If you want to be perfect, you can make a gap in the route
