SPECIFICATIONS
Brand Name: NoEnName_Null
Indoor/Outdoor Use: outdoor
Video Capture Resolution: 720P HD
Camera Mount Type: 3-axis Gimbal
Controller Battery: 0
Origin: Mainland China
Takeoff Weight: <1KG
Aerial Photography: Yes
Control Channels: 2 CHANNELS
Transit Time (Days): 190 Km/h (Manual Mode)
Flight Time: 5~10
Controller Mode: MODE1
Controller Mode: MODE2
Recommend Age: 14+y
Anti-wind Ability: 6
Hign-concerned Chemical: None
Is Electric: No battery
Material: Carbon Fiber
Material: Plastic
Material: Metal
Drone Weight: 437g (Without battery)
Remote Distance: 12M
Package Includes: Original Box
Remote Control: No
State of Assembly: Ready-to-Go
Barcode: No
Type: HELICOPTER
Features: App-Controlled
Description

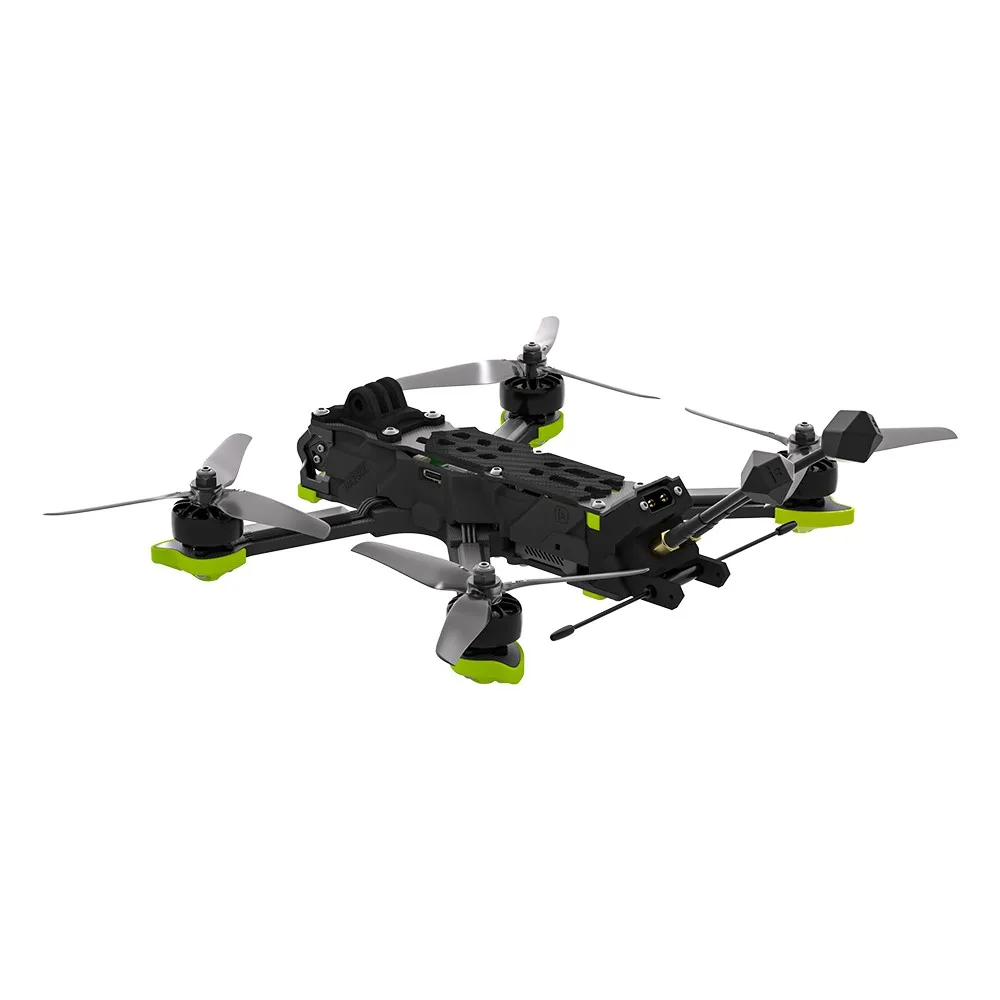

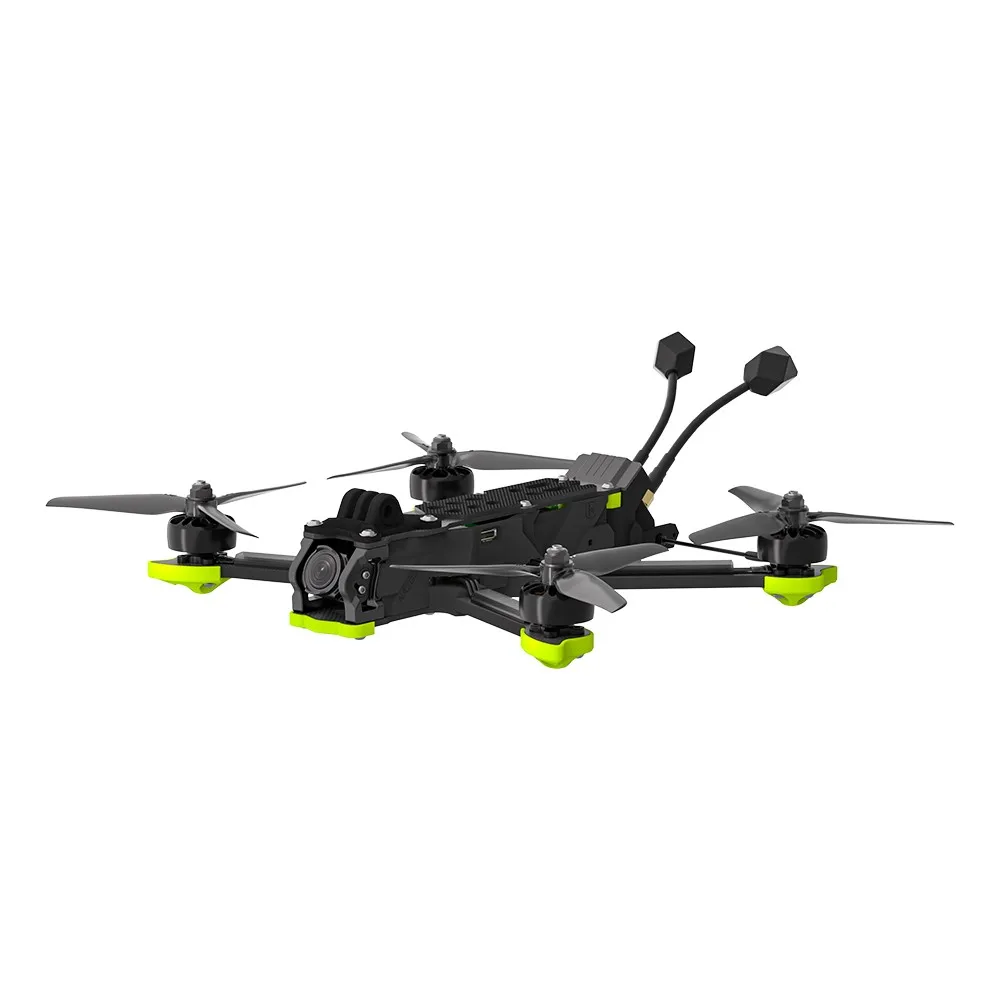

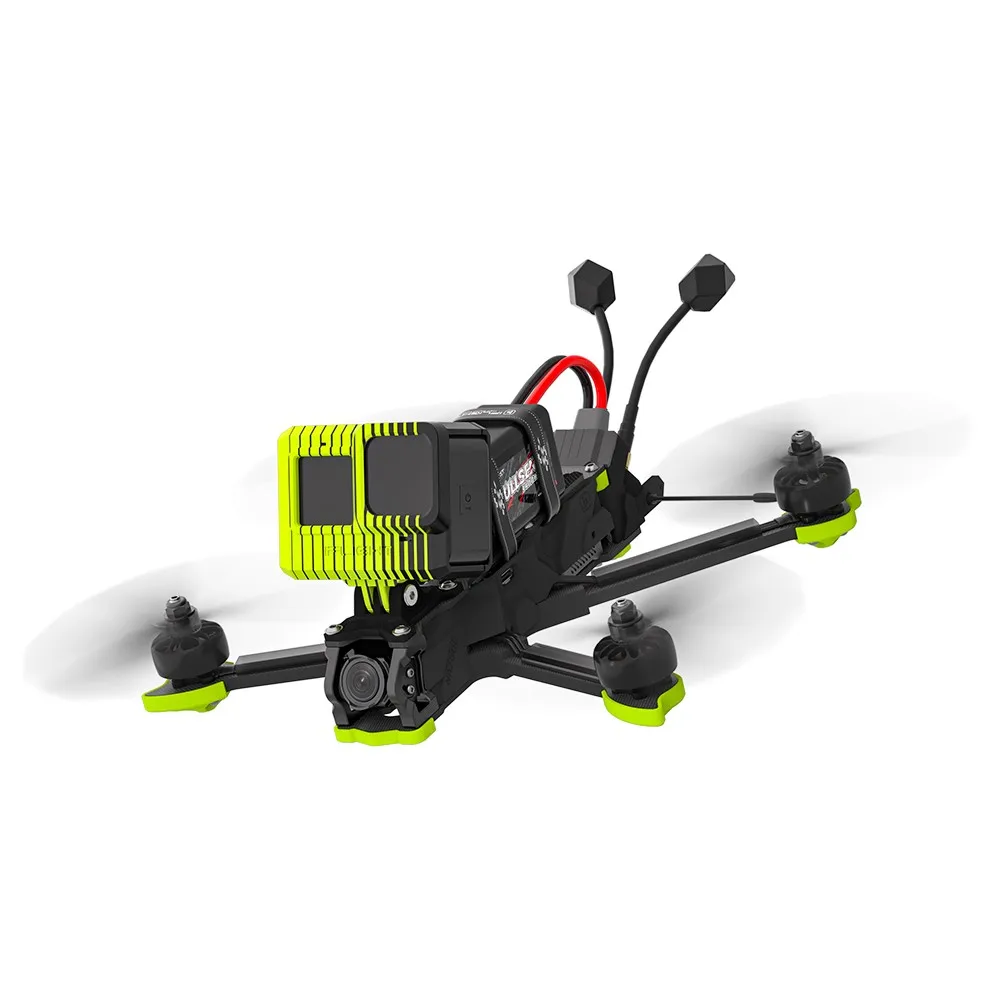

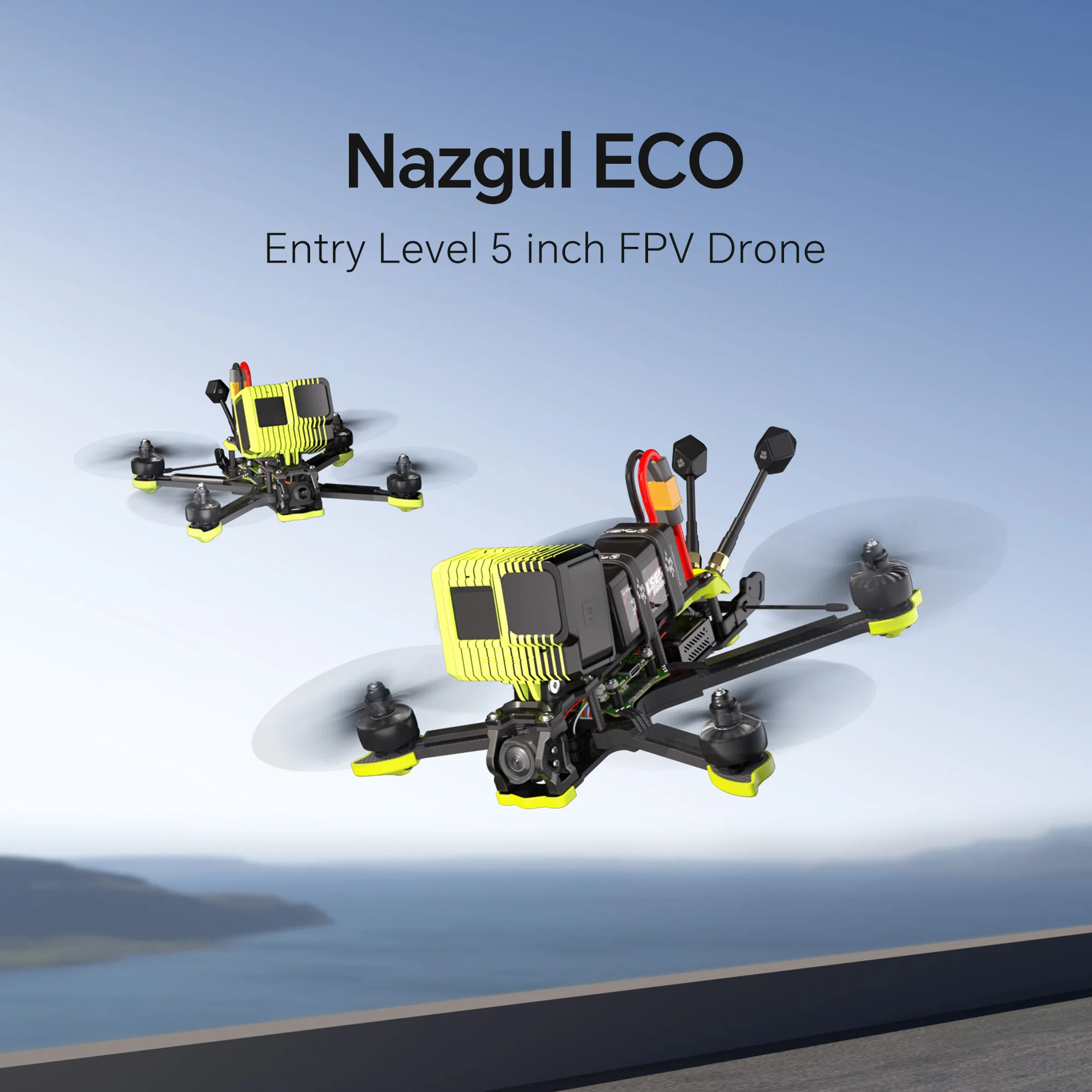

Introducing the Nazgul DC5 ECO - Redefining performance and value in a 5-inch standard freestyle drone. Equipped with the DJI Newest O3 Digital HD System, its unique design ensures no prop in view, allowing direct use of the O3 air unit's video. With the ATF435 flight controller and BLITZ E55S 2-6S 55A ESC, it delivers unparalleled performance and reliability. The carbon fiber frame with aluminum camera mount is lightweight yet durable, while the included GoPro mount offers versatility to capture your epic freestyle flights. Elevate your flying experience to new heights with the Nazgul DC5 ECO.
Highlights

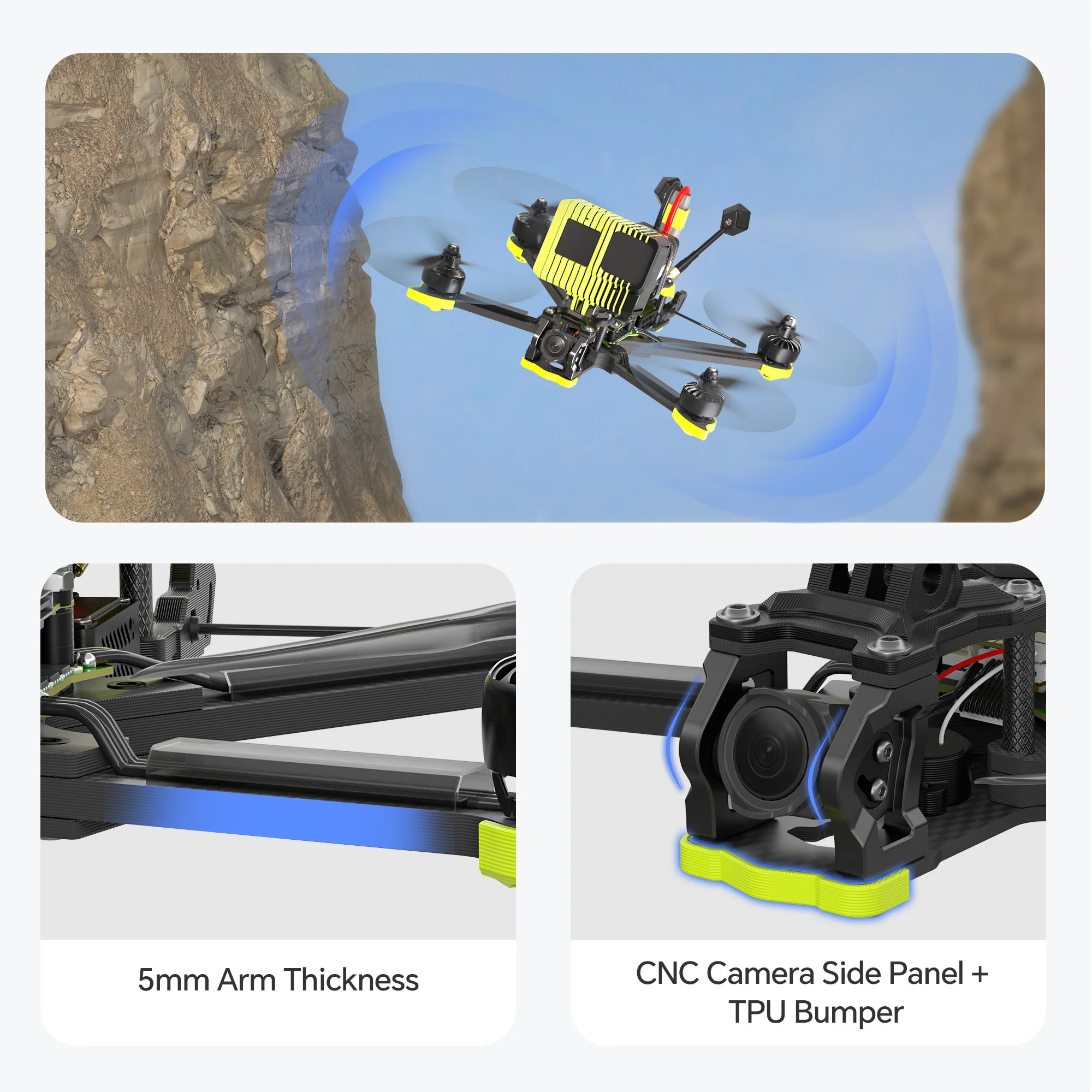

Lightweight and Durable

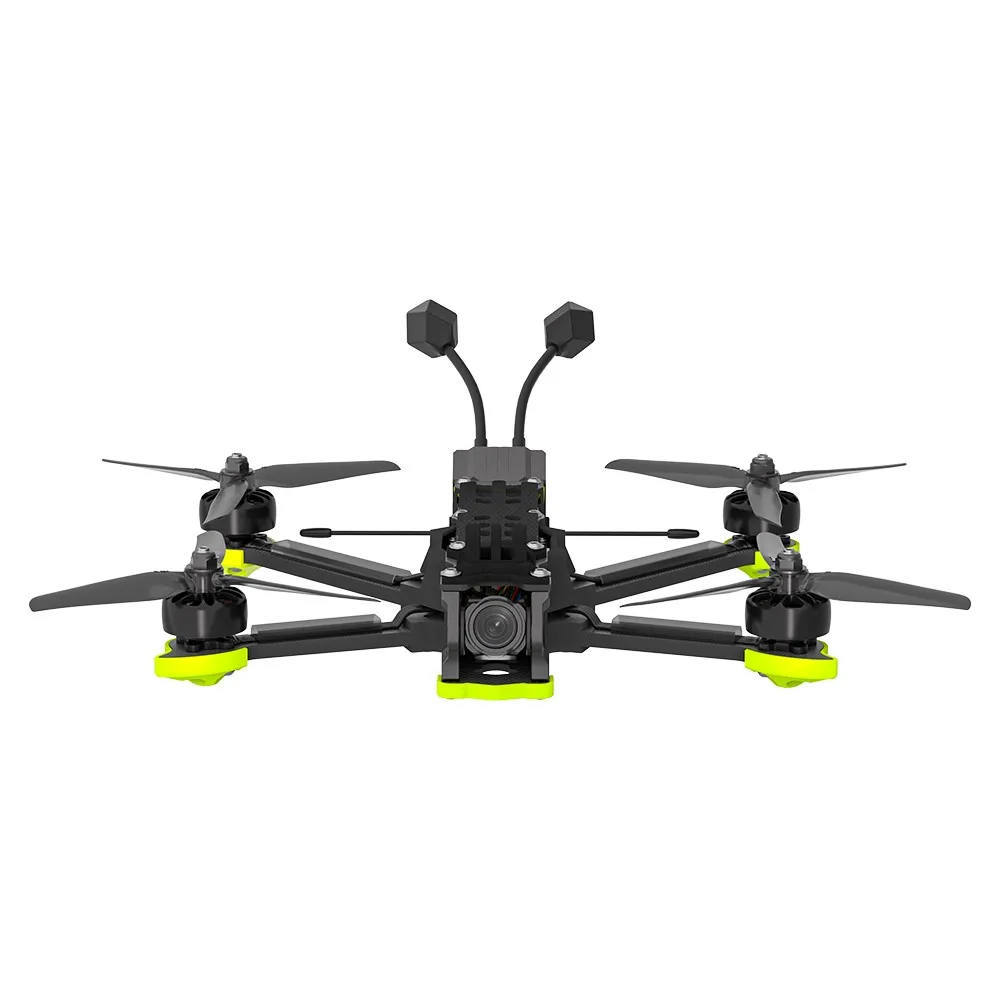

A combination of carbon fiber and aluminum ensures a lightweight yet robust structure for your camera equipment. Designed for clear video output without propellers obstructing the view, enhancing the aesthetic quality of your aerial footage.
Anti-Spark Filter
Plugging in a battery can create a loud spark at the connector which is caused by the high battery current rushing into the low ESR capacitor first as well as filling up ESC capacitance. We've added a protective circuit to extend the lifespan of XT60 connectors and prevent rapid voltage or current spikes which can protect your electronics from damage.
DJI O3 HD Air Unit Low-Latency digital transmission
Up to 10 km video transmission range, enjoy a crisp and smooth real-time view in your goggles, even in environments with interference. (Source DJI)
The HD version allows for the installation of ND filters, providing more control over camera exposure settings.
4K Stabilized Video with 155° Ultra-Wide Angle
Together with high-grade imaging performance, it delivers exceptional visuals that will keep your audience on the edge of their seats. (Source DJI)
Enhance user experience and streamline maintenance
Equipped with a built-in buzzer and receiver mount, this feature makes it convenient maintenance and adjustments to the receiver.
DIY customized space
Create your own personalized space with the flexibility of standard 20x20 and 30.5x30.5 mounting holes, ensuring compatibility with popular flight stacks and VTX systems available in the market. Tailor your setup to your liking and enjoy a seamless integration process with these versatile mounting options.
Specifications

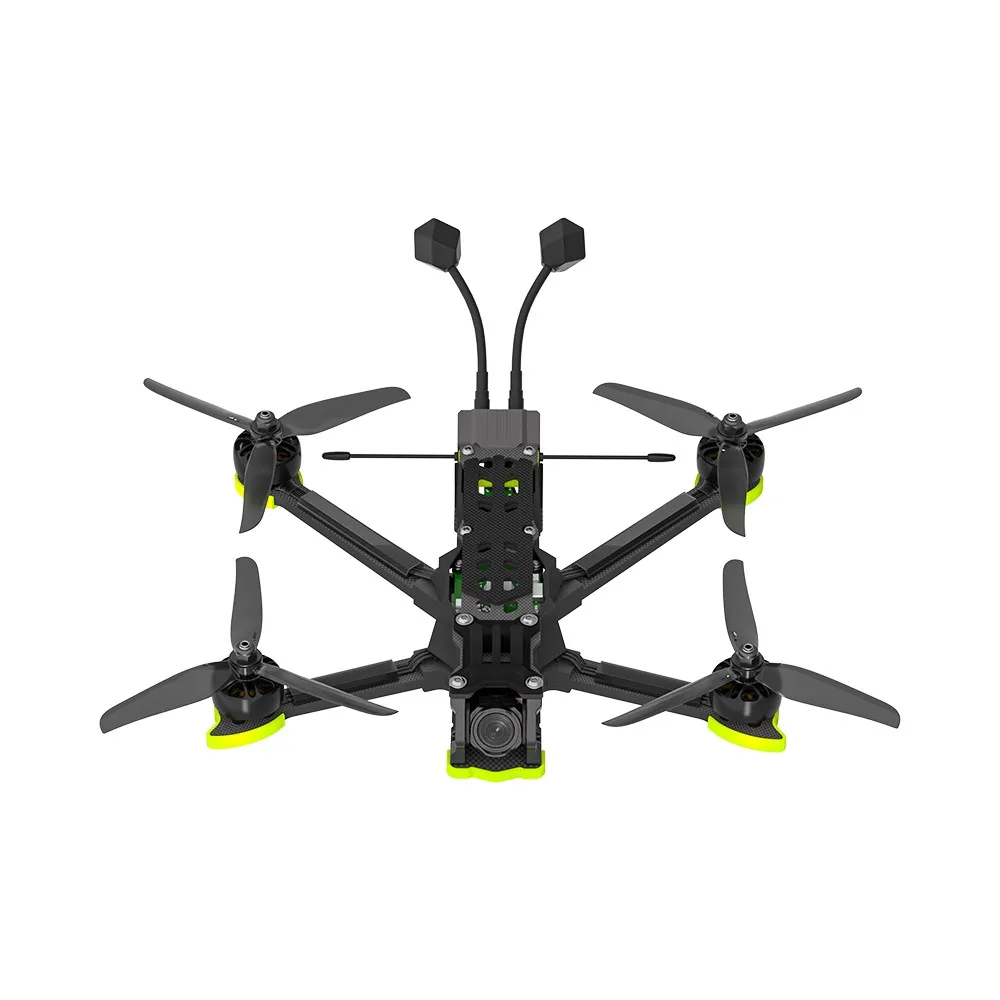

Product Name: Nazgul DC5 ECO 6S O3 HD

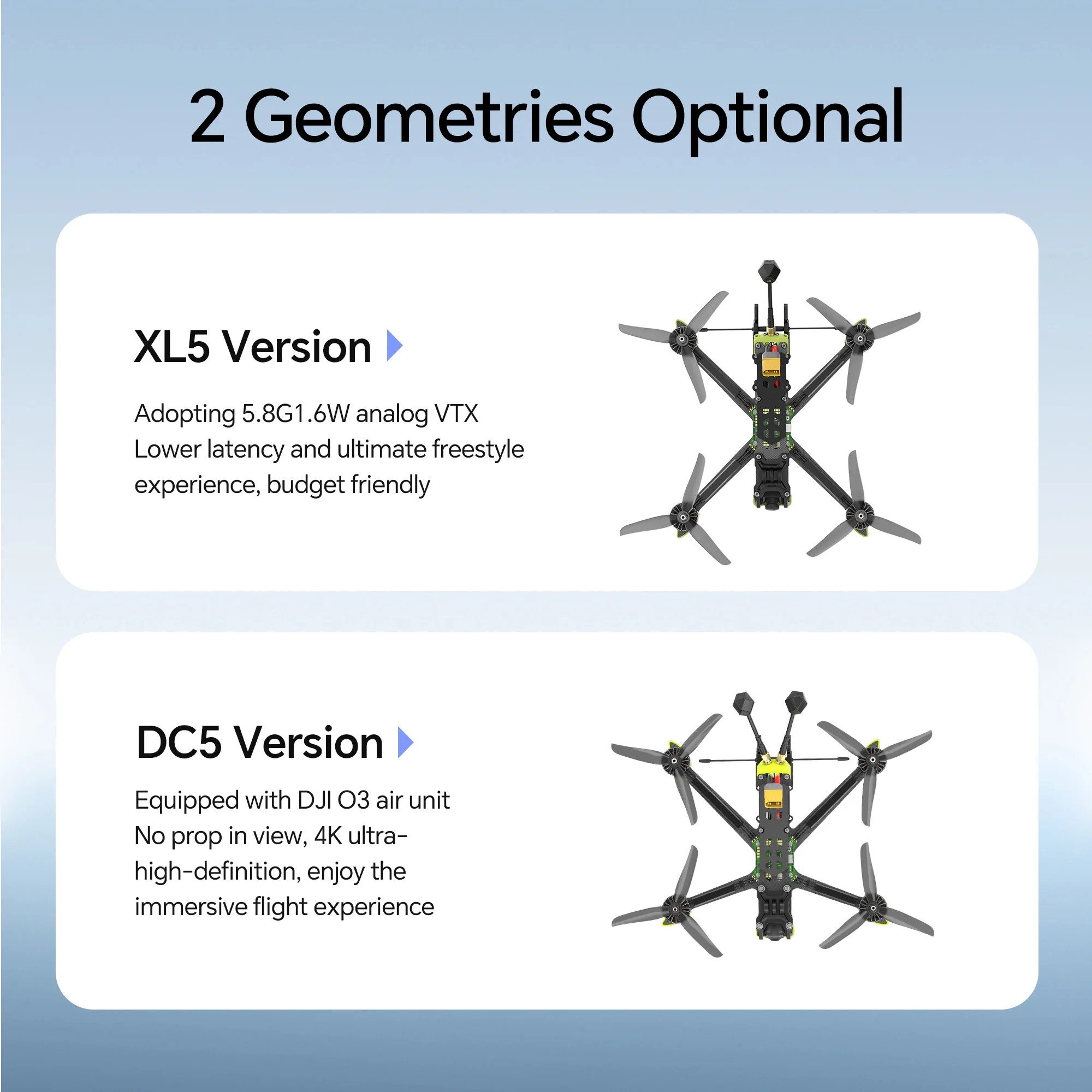

Geometry: DC (DeadCat)
FC: BLITZ ATF435 Flight Controller
ESC: BLITZ E55S 55A 4-IN-1 ESC
Video Transmission: DJI O3 Air Unit

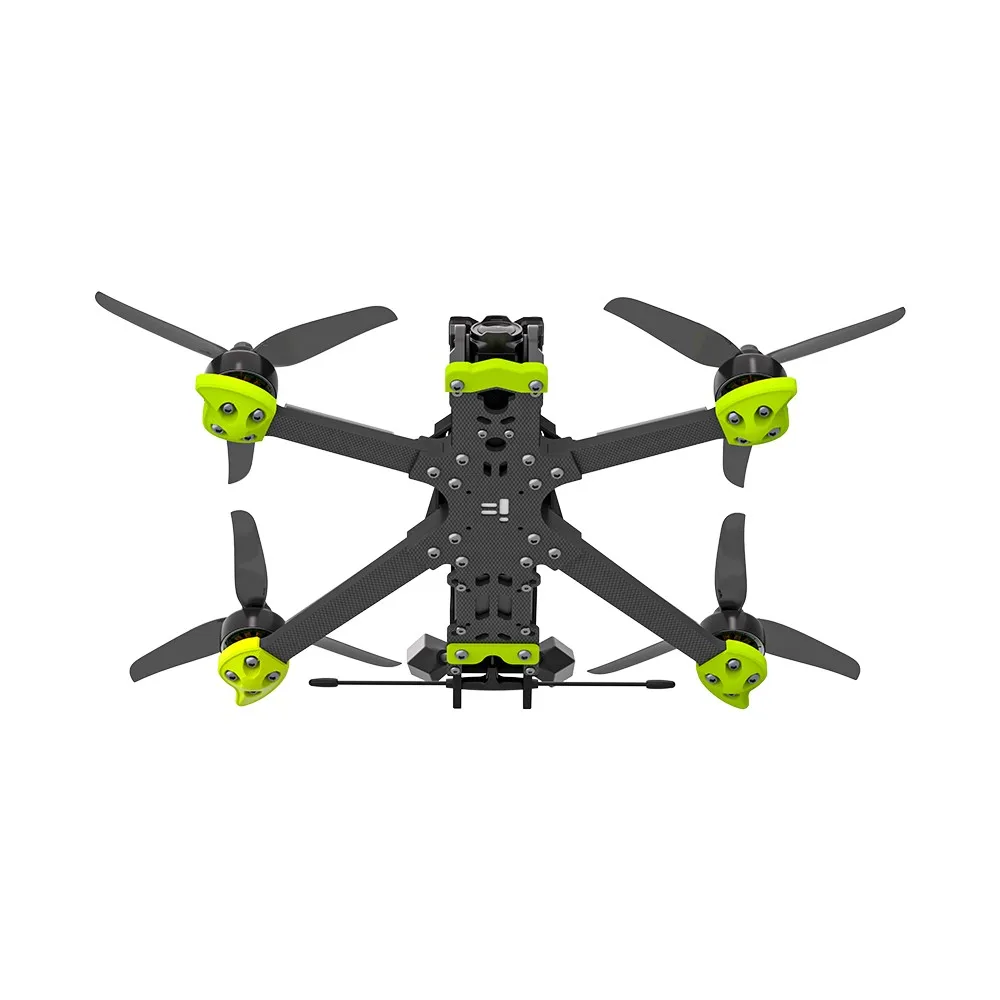

Frame: 240mm wheelbase
Motor: XING-E Pro 2207 motors
Prop: Nazgul F5 propellers
Takeoff Weight: Approx. 437g (Without battery)
Dimensions (L×W×H): 193×144×34 mm
Max Speed: 190 Km/h (Manual Mode)
Maximum Takeoff Altitude: 7000 m
Max Hover Time: Approx. 7.5 mins (No Load with 6S 1400mAh)
Max Wind Speed Resistance: Level 7
Operating Temperature Range: -10° to 40° C (14° to 104° F)
Antennas: Dual Antenna
GNSS: GPS+SBAS+Galileo+QZSS+Glonass(Optional)
Video Transmission
Product Name: DJI O3 Air Unit
Communication Bandwidth: Max 40 MHz
FOV (single screen): 155°
Communication Frequency:2.400-2.4835 GHz (RX only) / 5.725-5.850 GHz (RX and TX)
End-to-End Latency
With DJI FPV Goggles V2:
810p/120fps Video Transmission Quality: The latency is lower than 28 ms.
810p/60fps Video Transmission Quality: The latency is lower than 40 ms.
With DJI Goggles 2:
1080p/100fps Video Transmission Quality: The latency is as low as 30 ms.
1080p/60fps Video Transmission Quality: The latency is as low as 40 ms.
Max Video Transmission Bitrate: 50 Mbps
Max Video Transmission Range:10 km (FCC), 2 km (CE), 6 km (SRRC)
Operating Temperature Range: -10º to 40º C (14° to 104° F)
Power Input: 7.4-26.4 V
Audio Transmission: N/A
Packing List
Note
1. iFlight products may be used for civilian purposes only and any direct or indirect use of iFlight products for or in connection with the following is prohibited:
(1)Any military combat purpose or military combat related use;
(2)Terrorist activities: The purchaser also shall require its customers or end users to comply with the foregoing requirements.
2. If party A has violated applicable export control or economic sanctions laws and regulations, Party B has the right to immediately suspend delivery of products to Party A or terminate relevant cooperation without any liability.
