QCSMART WiFi Double Curtain US Switch Tuya Smart Life Remote Control Blinds Roller Shutter Percentage Timer Google Home Alexa
SPECIFICATIONS
Brand Name: QCSMART
Origin: Mainland China
is_customized: Yes
Wattage: 300W/Gang
Voltage: 110-240V
Certification: CE
Certification: RoHS
App Name: Tuya, Smart Life
Support System: Both Android and IOS
Voice Control: Google Home, Amazon Alexa
Works for: Smart blinds, Smart Curtain,
Wireless Protocol: Wi-Fi 2.4Ghz, not support Wi-Fi 5G
Works with: Blinds Shutter with electric motor
Compatible with: tubular motor with 4 wires
connect with: Tubular motor, electric blind motor
Dimensions: 120mm*72mm*39mm
Features
- Percentage Control Function: You can control the opening and closing percentage of the curtains on the smart life app.
- Support Bluetooth speed matching network, save tedious operations.
- US Standard Size: 120mm*72mm*39mm
- App Remote Control: Support Smart Life APP /Tuya APP.
- Voice Control: Compatible with Amazon Alexa, Google Home.
- Touch Panel Control: Tempered glass touch panel, safe and high quality, moisture-proof, safe operation even with wet hands.
- Timer and Schedule: You can set timer schedule for when to open or close your window or roller shutter.
- Device Sharing: You can create group in the APP to manage all the blinds in your house and share the devices to all your family members.
Specification
Input voltage: 100-250 VAC, 50 / 60Hz
Wiring: Neutral Wire, L1, L2, Earth Wire
Max Load: below 300 W / gang
App Name: Smart Life or Tuya App
Wireless Protocol: Wi-Fi 2.4 GHz 802.11 b / g / n (Not support 5Ghz Wi-Fi)
Switch Channels: Double Control Curtain Switch
Standby Consumption: below 0.5W
Dimensions: 120mm*72mm*39mm
Button Type: Touch Panel Button
Plastic Material: Fireproof ABS
Produced by ISO9001 Factory: Yes

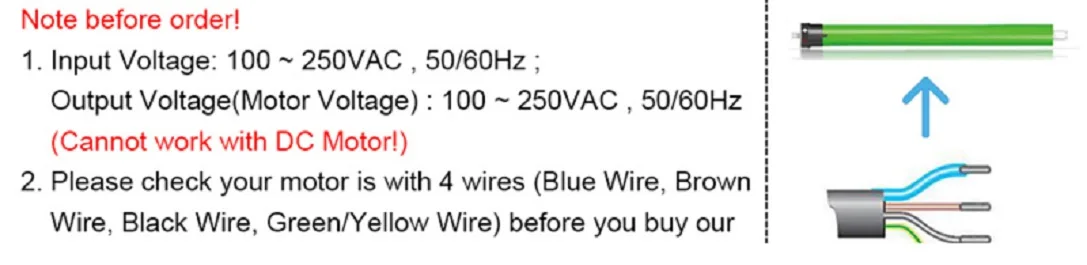

Note Before Order!

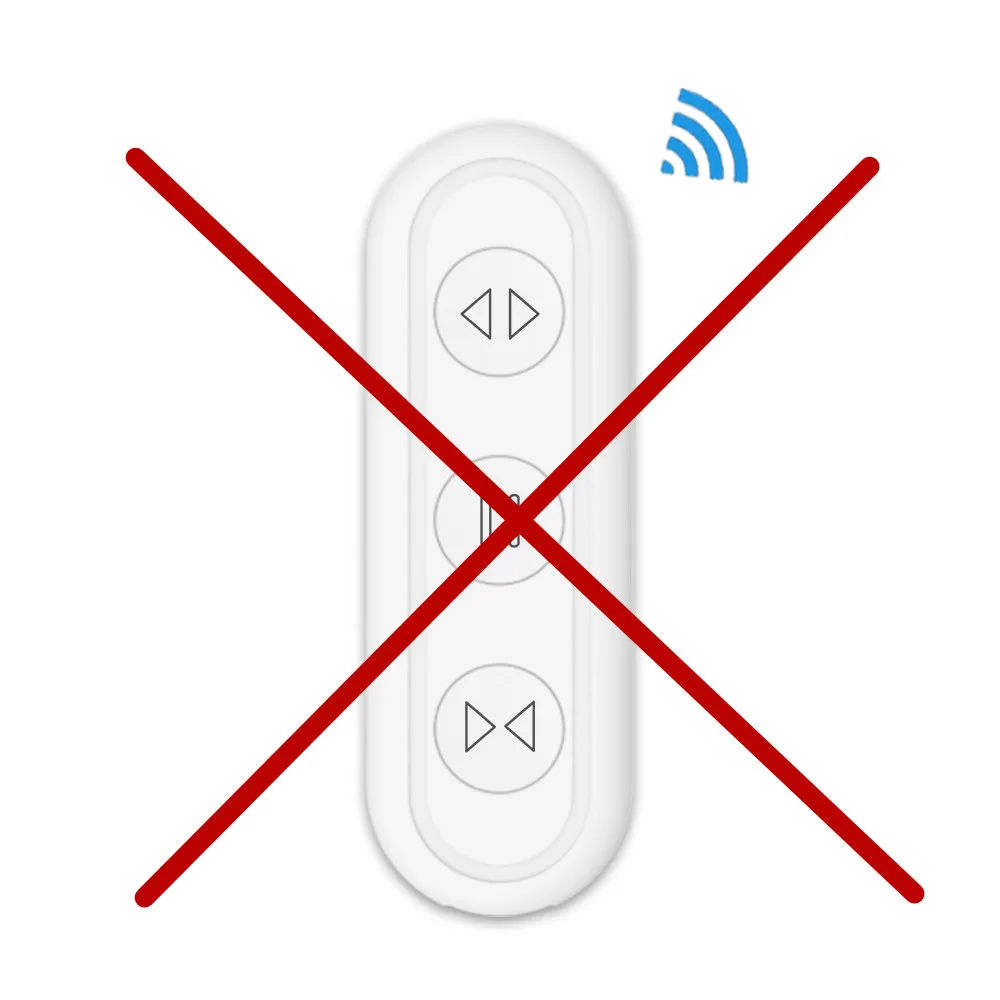

This is a Wi-Fi only Curtain Switch, it can’t work with our RF curtain remote. Please don’t buy the extra RF remote to add the remote control, they are not compatible.
- Please check your motor is with 4 wires (Blue Wire, Brown wire, Black Wire, Green/Yellow Wire) before you buy our.
- The switch can be compatible with any electric shutter motor with 100-250 VAC voltage input, 300W Max / Gang. but the neutral wire must be required for installation.
- Please be noted this is a double curtain switch, please contact us if you have any questions.

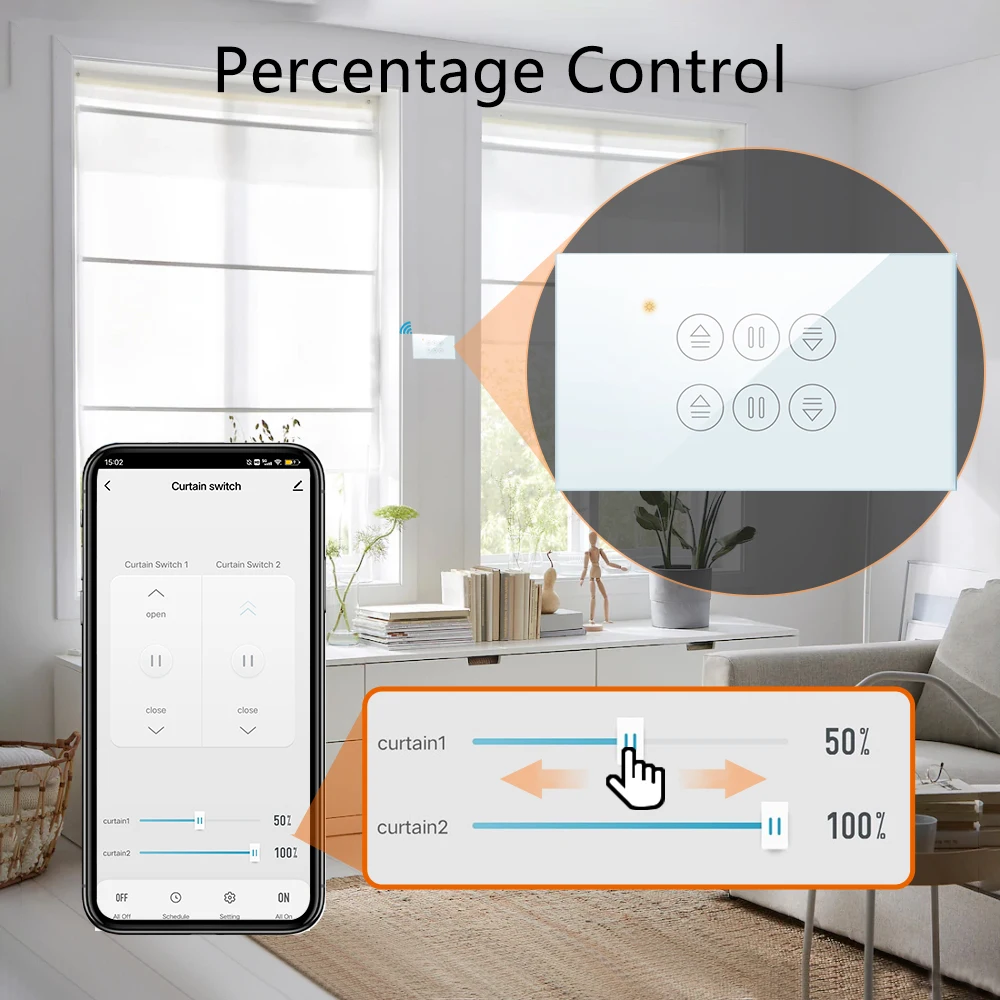

Percentage Control Function
- You can control the opening and closing percentage of the curtains on the smart life app, and adjust the light and darkness of the room.
- And you can open the curtain to 50% as you need.
- You can check the shutter status even you are not at home.
Mobile App Control
- APP Name: Smart Life App, Tuya App
- Support : Android and IOS
- You can control your smart curtains by mobile phone anytime, anywhere as long as it's with network.

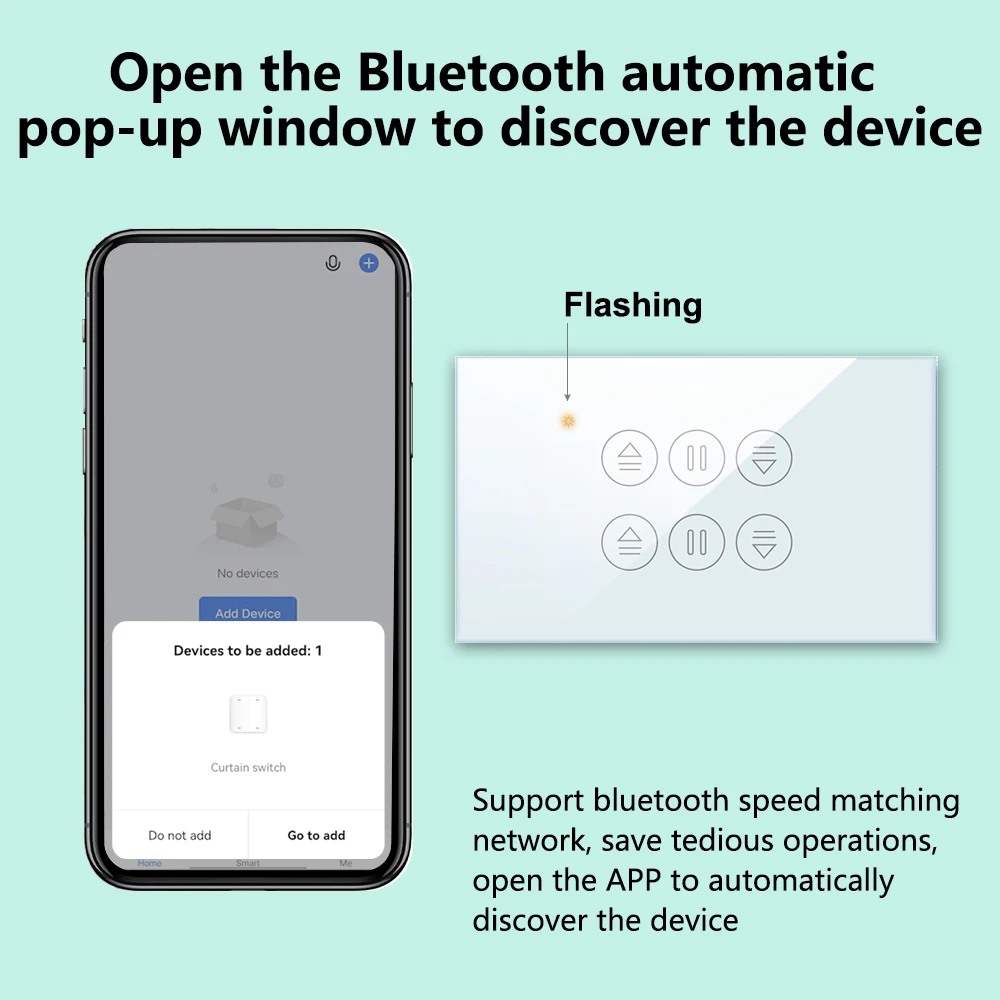

Supports Bluetooth fast networking mode
Support Bluetooth fast matching network, save tedious operations, open Bluetooth automatically pop-up window to discover devices
Hands-free Voice Control
- Compatible with Alexa, Google Home
- With voice control to turn on and turn off the curtains.

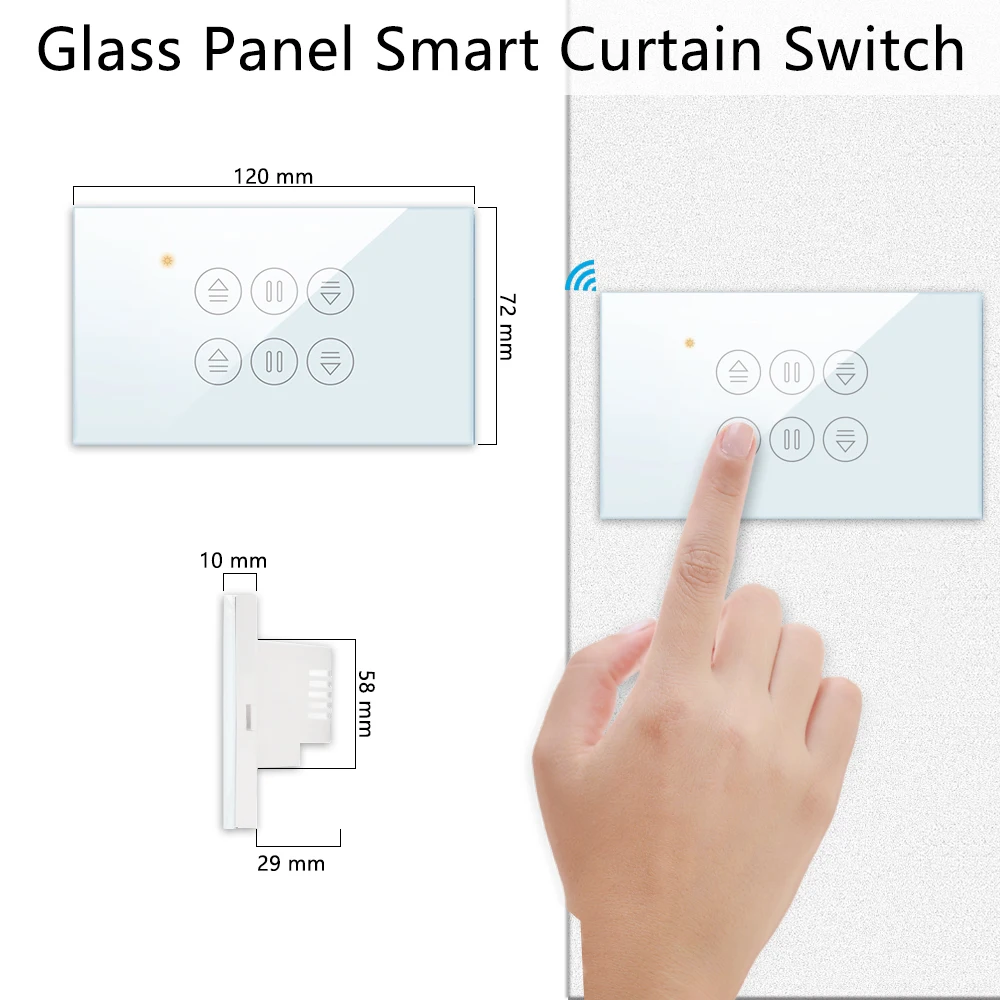

Glass Panel Touch Switch Control
- This doube switch is a touch switch with 6 keys on the panel, you can control the opening and closing of the two curtains separately.
- US Standard Size
- Dimensions: 120mm*72mm*39mm

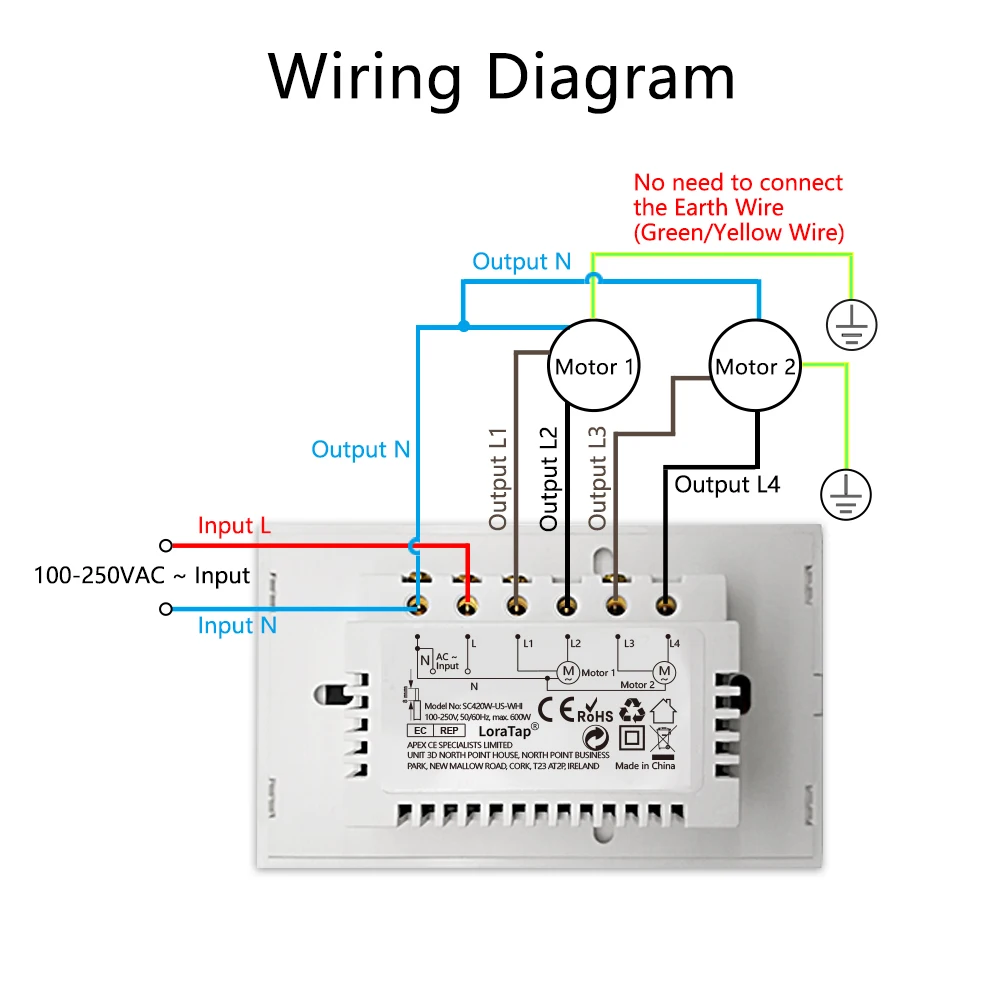

Wiring Diagram
- Please check your motor is with 4 wires (Blue Wire, Brown wire, Black Wire, Green/Yellow Wire) before you buy our.
We have all the accessories you need in the box, you don't need to pay extra cost.

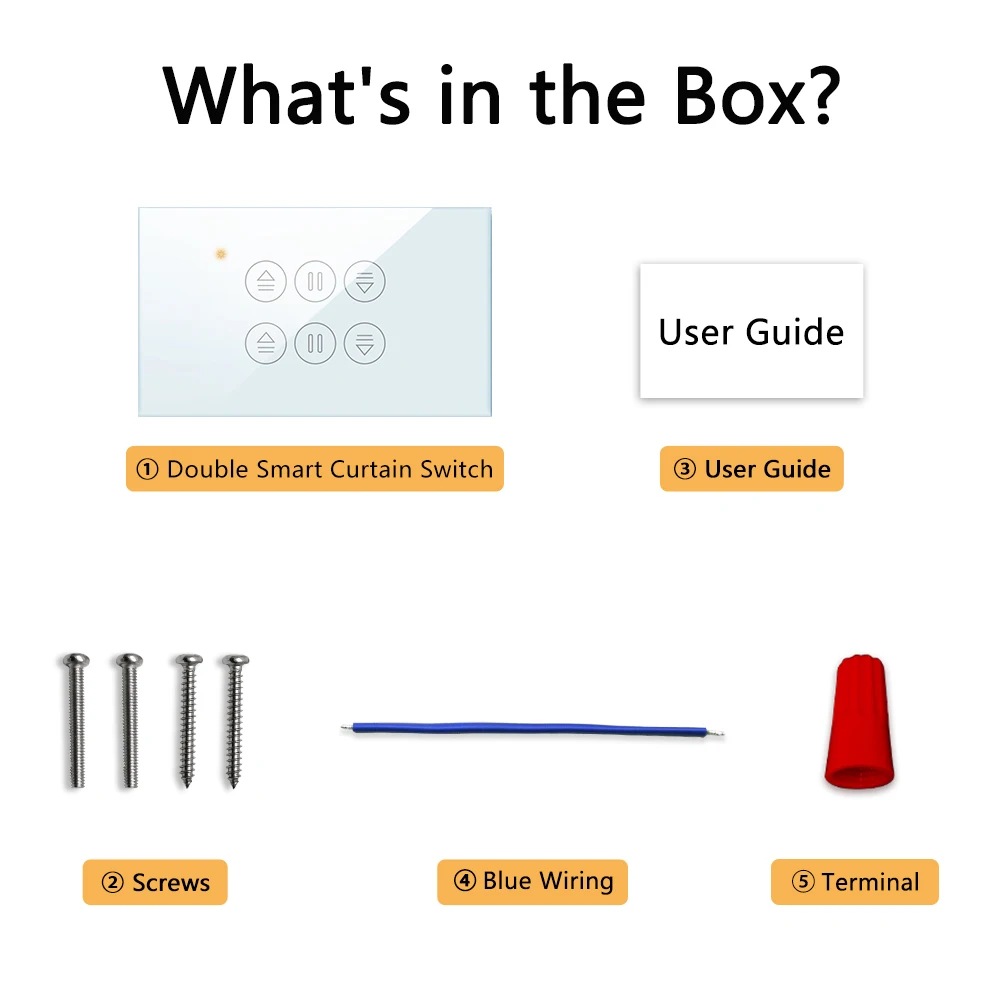

What's in the box?
1 * Wi-Fi Double Curtain Switch
1 * User Guide
2 * Screw Kits
1 * Blue Cable for Neutral Wiring
1 * Terminal for Neutral Wiring
This is a WiFi Only Product. It can't work with any RF remote in our store.
